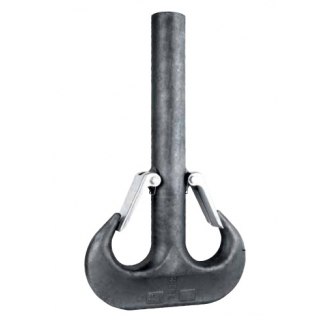

Gancho haste duplo DIN 15402

Ganchos haste duplo tipo DIN 15402 nas classes P, T e V utilizados em talhas, guindastes, pontes rolantes ou outros equipamentos.

Código

Nro.

Dimensões

Peso

kg

Classe P

Classe T

Classe V

a1

mm

a2

mm

a3

mm

a4

mm

b1

mm

d1

mm

e

mm

f1

mm

h

mm

l1

mm

l2

mm

135002PS

135002TS

135002VS

2,5

50

40

65

32

40

40

112

208

50

250

-

6,6

135402PS

135402TS

135402VS

-

350

7,6

135004PS

135004TS

135004VS

4

56

45

73

36

48

48

124

238

60

280

-

9,4

135404PS

135404TS

135404VS



340

10,7

135006PS

135006TS

135006VS

6

71

56

92

45

60

60

160

301

75

375

-

18,3

135406PS

135406TS

135406VS

-

515

21,4

135008PS

135008TS

135008VS

8

80

63

103

50

67

67

182

337

85

415

-

27,0

135408PS

135408TS

135408VS

-

615

31,0

135010PS

135010TS

135010VS

10

90

71

116

56

75

75

192

377

95

450

-

38,0

135410PS

135410TS

135410VS



650

45,0

135012PS

135012TS

135012VS

12

100

80

130

68

85

85

210

421

106

510

-

52,6

135412PS

135412TS

135412VS

-

710

61,5

135016PS

135016TS

135016VS

16

112

90

146

77

95

95

237

471

118

580

-

70,0

135416PS

135416TS

135416VS

-

780

81,0

135020PS

135020TS

135020VS

20

125

100

163

85

106

106

265

531

132

650

-

98

135420PS

135420TS

135420VS

-

850

108

135025PS

135025TS

135025VS

25

140

112

182

95

118

118

315

598

150

715

-

134

135425PS

135425TS

135425VS



915

151

135032PS

135032TS

135032VS

32

160

125

205

106

132

132

335

672

170

790

-

184

135432PS

135432TS

135432VS

-

990

205

135040PS

135040TS

135040VS

40

180

140

230

120

150

150

375

754

190

885

-

382

135440PS

135440TS

135440VS

-

1085

410

135050PS

135050TS

135050VS

50

200

160

260

135

170

170

420

842

212

965

-

392

135450PS

135450TS

135450VS

-

1165

428

135063PS

135063TS

135063VS

63

224

180

292

155

190

190

460

944

236

1090

-

547

135463PS

135463TS

135463VS

-

1290

597

135080PS

135080TS

135080VS

80

250

200

325

170

212

212

515

1062

265

1235



759

135480PS

135480TS

135480VS

-

1435

819

135098PS

135098TS

135098VS

100

280

224

364

190

236

236

575

1186

300

1375

-

1060

135498PS

135498TS

135498VS

-

1575

1130

135099PS

135099TS

135099VS

125

315

250

408

215

265

265

645

1330

335

1550

-

1491

135499PS

135499TS

135499VS

-

1750

1581
