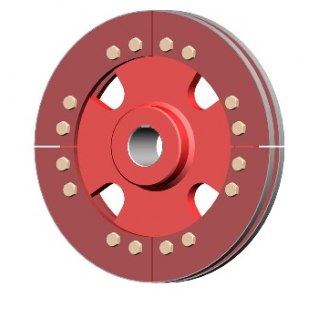

Rodas lisas segmentadas SEG-A e SEG-E
Rodas lisas segmentadas para utilização com correntes HV e DS e também com terminais de corrente conforme DIN 764 e DIN 766 em canecas com montagem traseira.
Tipo
|
Corrente | Diâmetro | e | b | c | Nro. de | Peso aprox. |
SEG-A ou | diâmetro | primitivo | segmentos | ||||
SEG-E | [mm] | [kg/pc.] | |||||
SEG-... 13/500 | 13 + 14 | 500 | 100 | 48 | 18 | 8 | 50 |
SEG-... 16/500 | 16 | 500 | 100 | 58 | 22 | 8 | 52 |
SEG-... 16/630 | 16 | 630 | 160 | 115 | |||
SEG-... 16/710 | 16 | 710 | 160 | 165 | |||
SEG-... 16/8800 | 16 | 800 | 190 | 290 | |||
SEG-... 20/500 | 19 + 20 | 500 | 100 | 68 | 28 | 8 | 56 |
SEG-... 20/630 | 19 + 20 | 630 | 160 | 120 | |||
SEG-... 20/710 | 19 + 20 | 710 | 160 | 170 | |||
SEG-... 23/630 | 22 + 23 | 630 | 160 | 80 | 30 | 8 | 125 |
SEG-... 23/710 | 22 + 23 | 710 | 160 | 170 | |||
SEG-... 23/800 | 22 + 23 | 800 | 160 | 225 | |||
SEG-... 23/900 | 22 + 23 | 900 | 190 | 280 | |||
SEG-... 23/1000 | 22 + 23 | 1000 | 200 | 350 | |||
SEG-... 26/710 | 26 | 710 | 160 | 94 | 34 | 8 | 180 |
SEG-... 26/800 | 26 | 800 | 160 | 240 | |||
SEG-... 26/900 | 26 | 900 | 190 | 310 | |||
SEG-... 26/1000 | 26 | 1000 | 200 | 375 | |||
SEG-... 30/900 | 30 | 900 | 190 | 110 | 40 | 8 | 300 |
SEG-... 30/1000 | 30 | 1000 | 200 | 395 | |||
SEG-... 30/1250 | 30 | 1250 | 220 | 640 | |||
SEG-... 36/1250 | 34 + 36 | 1250 | 220 | 116 | 46 | 8 | 680 |
